Data Grid

Many transactions include a grid for data entry. For those familiar with spreadsheet applications, such as Microsoft® Excel®, grid style entry will be familiar. For most grids, data is item related; however, data grids are also used for ledger accounts, receivables payments, and more. Regardless of their intended usage, the basic functionality of the grid remains the same. Since most users will be using a grid with items, most topics and examples will focus on grids that involve item entry.

Grid Structure

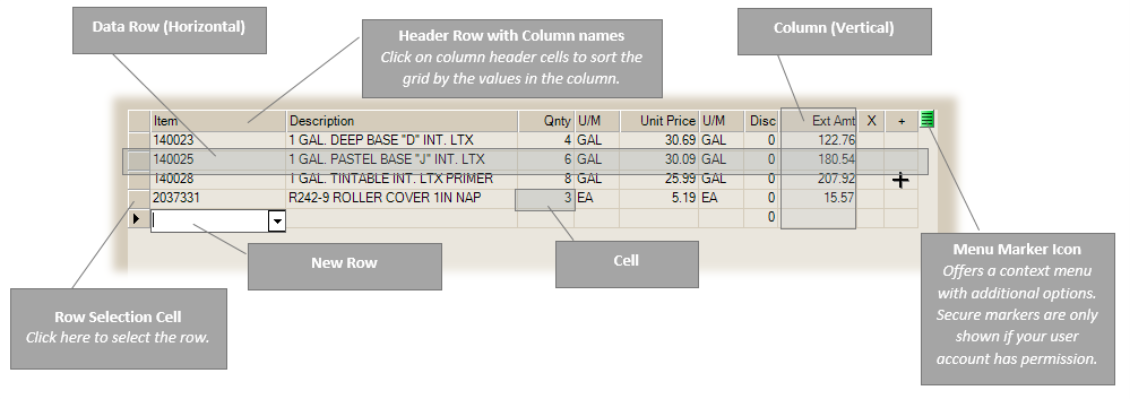

Each row (horizontal) represents the information about a specific item. The first row is for headings which identify the type of data in the columns and are also used for sorting. The columns and types of data displayed vary based on the needs of the transaction.

Data Grid (Item)

Just as when navigating a form, the data grid is comprised of both primary and secondary elements. When navigating through the data grid, some cells allow input (entry) and others are read-only (for informational purposes only). Read-only cells do not allow changes. Input cells provide some type of control such as a drop down or text input. Having the distinction between primary and secondary inputs adds efficiency during entry.

Primary

Primary columns are either required for entry (such as an item SKU) or involve data that typically would require user input (such as quantities). Primary columns will allow user input in almost all cases. These are accessed via TAB (forward) navigation through the grid. Primary columns are intended to be the most important fields for entry and selection. They represent the required information necessary for entry. These fields are assigned a TAB order so that users are placed in the fields during entry automatically.

Secondary

Secondary columns are not required for entry and involve data that is either less frequently modified or that may be read-only. Secondary cells can be accessed by clicking within the cell (or using SHIFT-TAB (backward) for keyboard access). Item descriptions are a common example of a secondary field.

Keyboard Navigation

Grids, like other areas, support keyboard use. Items are typically selected by their SKU (Stock Keeping Unit) or any alternate stock numbers that are set up, or scanned using a bar-code reader. After scanning, the keyboard is generally the fastest method for grid entry. For more detail about how keyboard entry functions within the data grid control, click here.

TAB

The TAB key can be used to move through a grid (or form). TAB is commonly used for navigating between fields on a form both in software applications and also on-line. A tab sequence has been established that takes the user to the most necessary fields in a specific order.

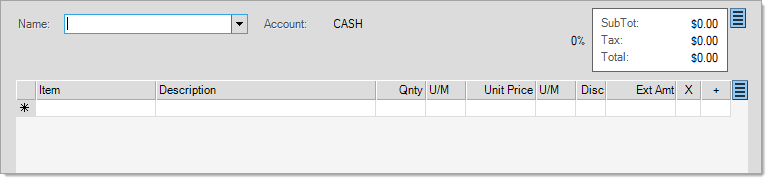

TabNav1

During grid entry, the TAB key moves the user horizontally through the grid from cell to cell (left to right). When the last primary column for the row is reached, the TAB key drops the user to the next row, first column.

To navigate in reverse (backward, from right to left), press and hold the SHIFT key while using TAB.

While using the TAB key to move through the grid (or form), some cells (or inputs) are skipped. These are secondary inputs and are not usually critical or required for entry, so they are bypassed. To access secondary fields, either click on the cell or use SHIFT-TAB for keyboard access (SHIFT-TAB moves the active field in the opposite direction through the grid or form, but doesn't skip secondary inputs).

Arrow Keys

In the grid, the left and right arrow keys move the user from cell to cell (left and right) in a row.

The up and down arrows move to cells vertically within the same column.

Grids have drop down selections just like the form area; however, to use arrow keys for selection in a drop down, a user must first press the enter (or return) key to activate the drop-down (either with or without a typed entry as a starting point).

Enter (or Return)

The enter (or return) key on the keyboard/keypad perform the same function. In a form, the function of enter varies. If the field is a drop down, enter activates the drop down selection. In other types of form fields, enter either does nothing or it works the same as TAB.

In a grid, pressing enter does either of 2 things: (1) activates a drop down selection (if any) or (2) changes the selected cell to the cell below (down one row in the same column).

How would this be used?

Using enter in the grid makes price and quantity adjustments quick and painless (especially when used with a numeric keypad).

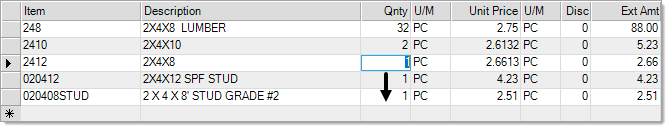

Change_Quantities

Enter accepts the value entered in an input or cell. If there is a prior entry in the input or cell, pressing enter (with no other entry) will not change the existing value. This allows a user to make changes efficiently and only requires additional keystrokes when necessary.

Alternate Menu Button

PC keyboards have a special button for alternate menu selection . Use this keyboard shortcut for available alternate menu options on selection box type inputs.

"Page Up" and "Page Down"

In the grid, the page up and down buttons can be used to move a page length up (top) or down (bottom) in the visible grid. The active cell will move to the top or bottom cell in the same column of the grid when pressed.

The grid displays up to 24-rows when the folder display is inactive and 11 when the folders (F4) are maximized. Grid size is used to determine a "page" based on the current active cell position when selecting the page up or down button. Pressing the "page up" button will move the active cell up either 24 or 11 cells (or to the top cell if there aren't this many items).

Pressing these keys repeatedly will move the active cell up or down another page length in the same direction until either the beginning or final cell in the grid is reached.

When a down arrow button appears next to an input, it means that the field has some additional function (drop down selection, search feature, calendar, etc.). Click on the arrow button and see what happens!

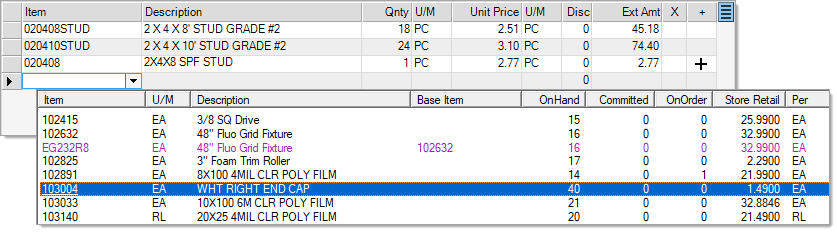

Arrow_Search

Searching & Selecting

Primary fields, such as a drop down control, are often search-able and may offer a context menu with additional look-up options.

To search a primary field, enter a partial match then press return (or enter) key. Doing this will automatically generate a selection listing of anything that matches the starting text. The wild card (%) character is only supported in some cases.

The context menu on a drop down control may offer additional look-up functions. Fields valid for searching will offer options relevant to the expected input. For example, an item number field will only offer search functions that relate to items (inventory).

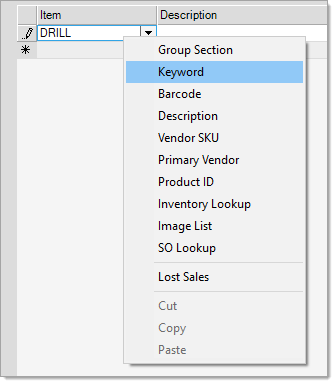

Item Selection by Keyword

Search options from an input are used with selection listings; however, there are also search options for use with items that have already been entered or copied into the grid (see below). These can be accessed from the context menu on the grid control (usually a right-click or by choosing the windows menu key).

Search Data Grid

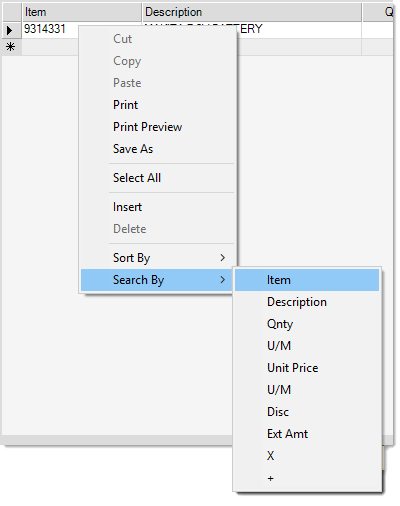

When searching the current data grid, you select the column you want to search using first. This opens a "search" dialog.

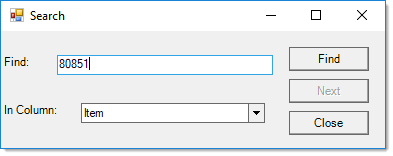

DataGrid_Search_Dialog

The "Find" text will default to the current row selection (if any). Change or enter the text as needed for the desired search a14nd choose "Find."

Color Coding in Item Selection Listings

When an item listing is displayed from the grid, users may notice various colors that appear. Item rows that are listed in red text are alternate stock codes assigned to another item. In this case, the "base item" displayed in the list is the actual item that is linked with the alternate SKU. Item rows listed in blue text are material lists. These items bring up a selection listing of either other items, comments, or both. Material lists often have no set price or require selection to calculate a price, so information regarding pricing is omitted. Quantities are not maintained for material lists either.

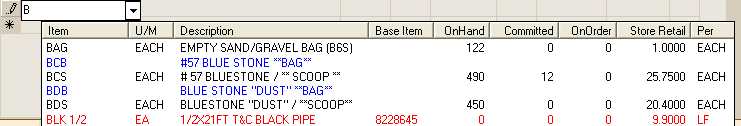

clip1638

Row Options

When a user chooses the context menu from the row header column (the darker square blocks just to the left of the active grid area), different options are displayed. These allow the user to insert or remove lines, for example.

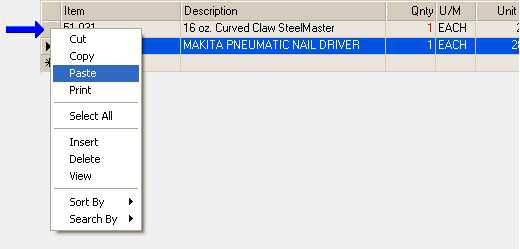

clip1678

Resizing a Row

In addition, users can use the blocks on the heading row to re-size a row. This is useful when an item has a long description that isn't fully displayed in the grid.

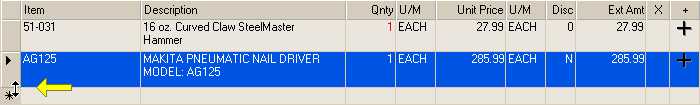

clip1679

To do this, hover the mouse between rows until a vertical line with arrows at both ends appears. Once this icon appears, click and drag up or down to re-size the row. Columns may not be re-sized. Clicking on a column heading temporarily sorts the column. No changes can be made while a grid is temporarily sorted. Pressing ESC (escape) cancels the sort and returns the grid to standard edit mode (for more information, see the topic Sorting a Grid).

Color Coding for Item Quantities

Color coding of quantities is used in item grids to indicate availability of stock. If an item has enough on-hand but the quantity entered in the grid exceeds the available (on-hand - committed), the quantity will appear in green text as a warning to the user. If the quantity entered in the grid exceeds the on-hand, the quantity will appear in red text instead. Black text indicates that the item is both in-stock and available.
